How to use Revit to design facade elements

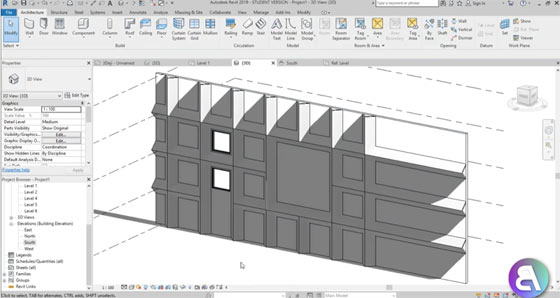

In this revit video tutorial, you will learn how to generate the façade elements as wall sweeps as well as modeling a custom wall sweep for that.

The Sweep tool in Revit can be used to add a baseboard, crown molding, or other type of decorative horizontal or vertical projection to a wall. You can add a wall sweep to a wall from a 3D or elevation view.

To add a sweep for all walls of a type, you modify the wall structure in the wall’s type properties.

It is possible to schedule wall sweeps. Integral wall sweeps, which belong to the wall type definition, cannot be scheduled separately.

If wall sweeps are formed at several heights and then later on set to the similar height, the sweeps miter at the joins.

While editing vertically compound walls, the sweeps tool can be used to manage placement and display of sweeps or reveals on all walls of that type.

To learn the complete process, watch the following video tutorial.

Video Source: Balkan Architect
